Micro850 Series PLC CPU 2080-LC50-24QWB – Factory Sealed

Micro850 Series PLC CPU Controller – 2080-LC50-24QWB

Original price was: R13,311.66.Current price is: R4,659.08.

The Micro850 2080-LC50-24QWB controller has 24 digital input/outputs: 14 24Vdc/Vac inputs, 10 relay outputs. It has embedded 24V DC Power Supply. It has 3 base plug-in slots, and up to 4 expansion modules can be used.
It has an operating temperature range of -20°C to 65°C and supports a maximum of four 2-wire High Speed Counters (HSC).

Base programming port: Embedded USB 2.0 (non-isolated).

Embedded communications ports: USB 2.0 (non-isolated), RS232/RS485 non-isolated combo serial, 10/100 Base T Ethernet port (RJ-45).

250V (continuous), Reinforced Insulation Type, Output to Aux and Network, Inputs to Outputs.
Type tested for 60 s @ 3250V DC Output to Aux and Network, Inputs to Outputs.
50V (continuous), Reinforced Insulation Type, Input to Aux and Network Type tested for 60 s @ 720V DC, Inputs to Aux and Network

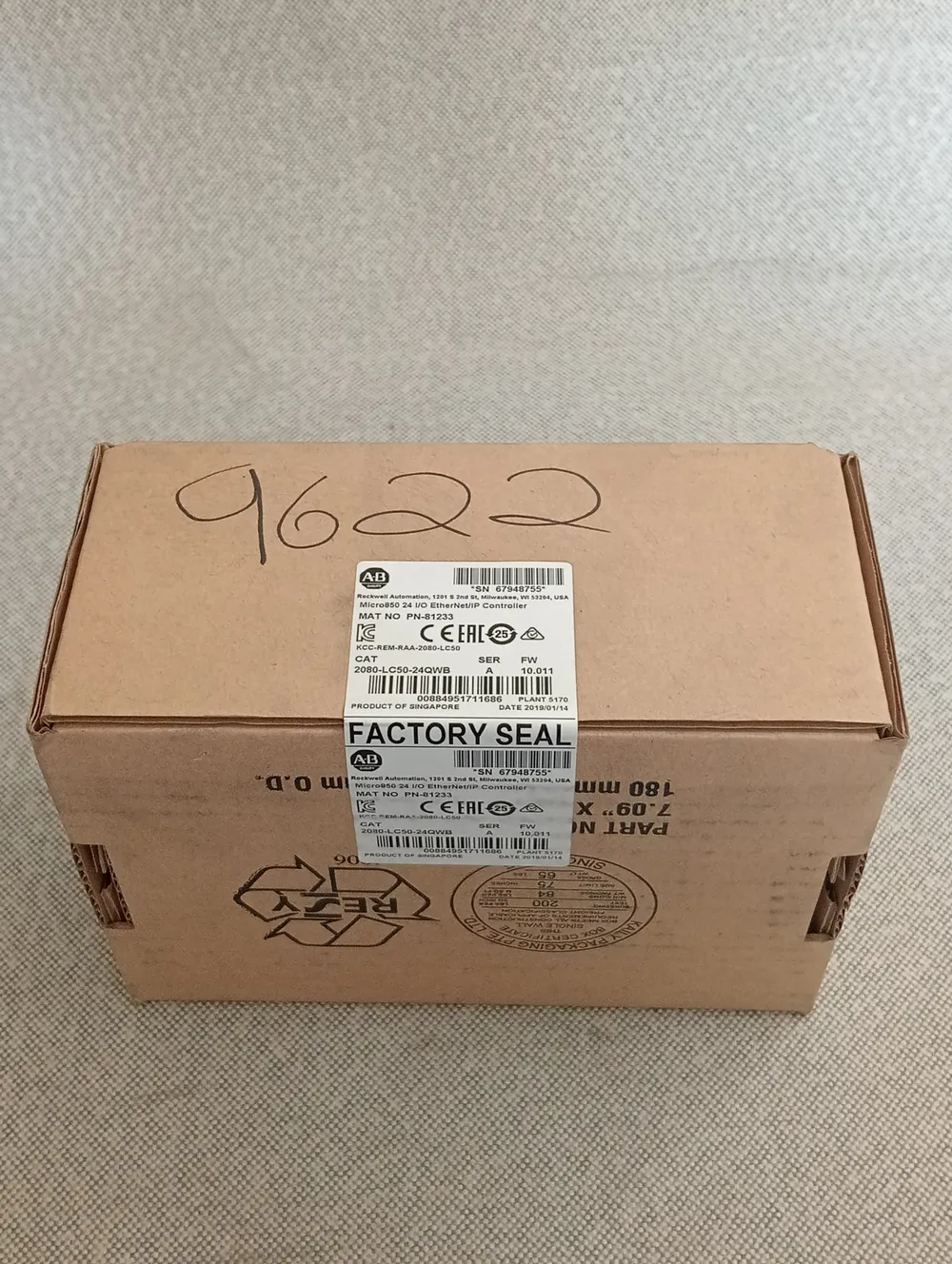

– FACTORY SEALED

1 in stock

Description

The Micro850 2080-LC50-24QWB controller has 24 digital input/outputs: 14 24Vdc/Vac inputs, 10 relay outputs. It has embedded 24V DC Power Supply. It has 3 base plug-in slots, and up to 4 expansion modules can be used.
It has an operating temperature range of -20°C to 65°C and supports a maximum of four 2-wire High Speed Counters (HSC).

Base programming port: Embedded USB 2.0 (non-isolated).

Embedded communications ports: USB 2.0 (non-isolated), RS232/RS485 non-isolated combo serial, 10/100 Base T Ethernet port (RJ-45).

250V (continuous), Reinforced Insulation Type, Output to Aux and Network, Inputs to Outputs.
Type tested for 60 s @ 3250V DC Output to Aux and Network, Inputs to Outputs.
50V (continuous), Reinforced Insulation Type, Input to Aux and Network Type tested for 60 s @ 720V DC, Inputs to Aux and Network

– FACTORY SEALED
